Decisive factors for the light intensity of a high-performance searchlight are the applied illuminant and the quality of the reflector. Optimal reflection performance and even 20 % more light intensity are obtained with the WISKA parabolic mirror of glass. The 'A' searchlights are equipped with a reflector of high-gloss aluminium.

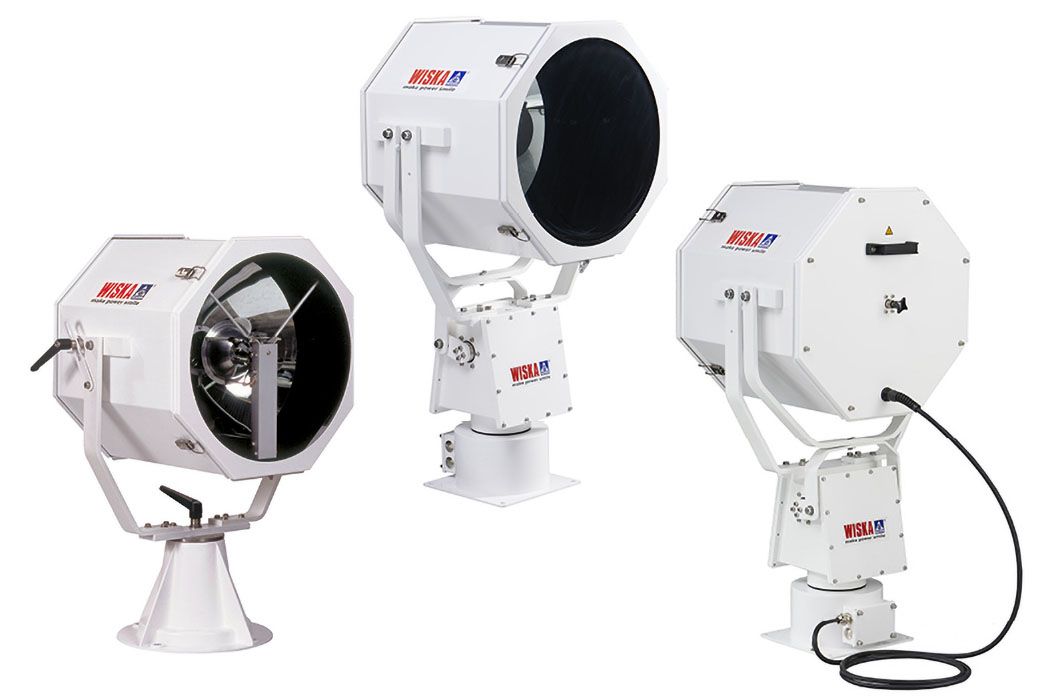

WISKA searchlights are suitable for all ocean-going and inland-waterway vessels - typical examples being merchant vessels, along with Defence, Costal Watch, Search & Rescue, Police, Customs and Fire fighting. The following lighting elements are available to suit different applications and illumination ranges:
Halogen incandescent lamps are spotlights of temperature which emit up to 20% of the electric power absorbed by a Wolfram light wire as light:
Halogen metal halide lamps stand out due to extraordinary light colour and optimal yield of light based on valuable metal additions in the discharge of gas:
Xenon lamps are stuffed with pure xenon. The discharge bow burns under extreme pressure reaching the highest luminous density among all lamps. The xenon lamps have a very long working life.
Xenon short arc lamps
| Type |
Capacity [W] |
Voltage [V] |
Luminous intensity |
Range |
Divergence |
| SX 450 | 1.600 | 115/230 1ph. 50/60 Hz or 115/440 3ph. 50/60 Hz. |
64,0 | 8.000 | 1,8 |
| 1000 | 92,0 | 9.600 | 2,7 |
Metal halide lamps
| Type |
Capacity [W] |
Voltage [V] |
Luminous intensity |
Range |
Divergence |
| SH 300 | 575 | 230 | 5,2 | 2.280 | 6,0 |
| SH 450 | 1.200 | 230 | 17,0 | 4.100 | 5,0 |
| SH 400 |
575 |
230 |
12,0 |
3.460 |
6,0 |
Halogen lamps
| Type |
Capacity [W] |
Voltage [V] |
Luminous intensity |
Range |
Divergence |
| SW 450 | 2.000 | 115 | 3,0 | 1.730 | 6,5 |
| 2.000 | 230 | 2,0 | 1.400 | 7,0 | |
| SW 450A | 2.000 | 115 | 2,4 | 1.550 | 7,5 |
| 2.000 | 230 | 1,6 | 1.280 | 8,0 | |
| SW 400 | 1.000 | 115 | 2,2 | 1.500 | 6,0 |
| 1.000 | 230 | 1,5 | 1.250 | 6,5 | |
| SW 400A | 1.000 | 115 | 1,8 | 1.350 | 6,5 |
| 1.000 | 230 | 1,3 | 1.140 | 7,0 | |
| 650 | 230 | 0,8 | 900 | 5,5 | |
| SW 300 | 1.000 | 230 | 1,0 | 1.000 | 8,5 |
| 650 | 230 | 0,8 | 890 | 5,5 | |
| 500 | 230 | 0,7 | 840 | 6,0 | |
| 250 | 24 | 1,3 | 1.140 | 4,5 | |
| SW 300A | 1.000 | 230 | 0,7 | 840 | 8,5 |
| 650 | 230 | 0,6 | 780 | 8,0 | |
| 500 | 230 | 0,5 | 710 | 6,0 | |
| 250 | 24 | 1,0 | 1.000 | 5,0 | |
| SW 200 | 100 | 24 | 0,4 | 648 | 3,5 |
| 150 | 24 | 0,5 | 692 | 5,5 | |
| 250 | 24 | 0,7 | 848 | 6,5 | |
| SW 200A | 100 | 24 | 0,4 | 590 | 4,0 |
| 150 | 24 | 0,4 | 630 | 6,0 | |
| 250 | 24 | 0,6 | 775 | 7,0 |

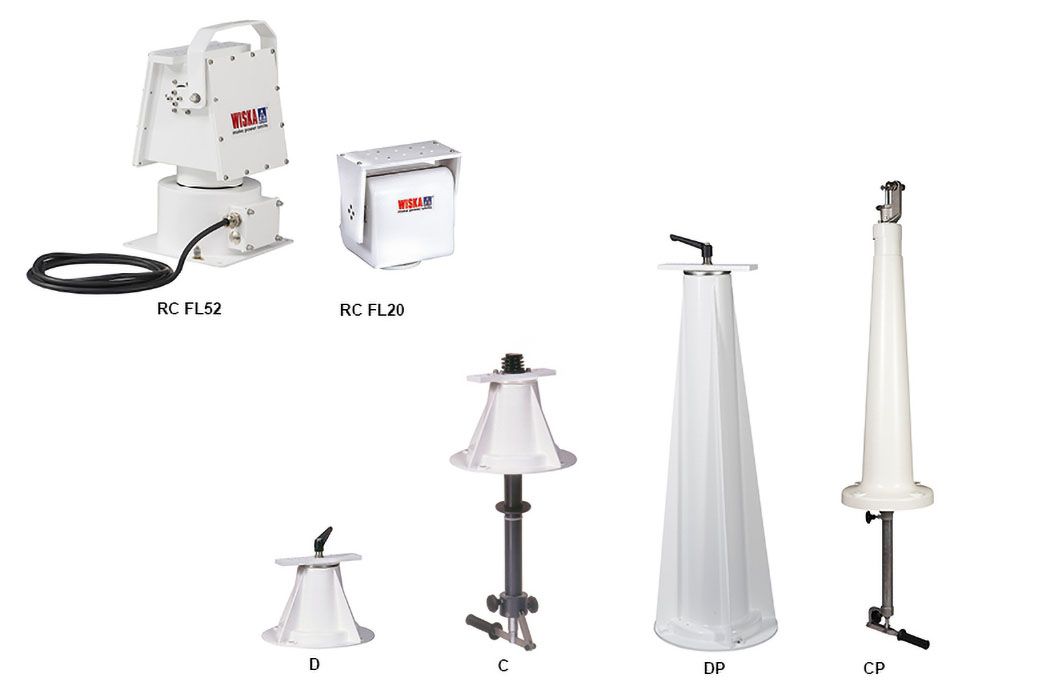

| D | deck mounted |
| DP | deck pedestal mounted |
| C | cabin control |
| CP | cabin control with pedestal |
| RC | with pan & tilt unit (FL20/FL52) for remote control |
