1145/MS/250V-1xW10A

HNA Coupling 16A 250V, brass, IP56

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo
WISKA-Order no. 10010679
Type 1145/MS/250V-1xW10A
Material Brass
Voltage 250 V
Type of Voltage AC
Current 16 A
Protection class IP54
Temp. range min -25 °C
Temp. range max 45 °C
Coupling interior HNA
Terminals/poles 2-pole + E
Type of cable gland M 24 x 1,5
Ø cable diameter min 8 mm
Ø cable diameter max 10,5 mm
Type of cable non-armoured
Norm HNA, DIN 89266
Weight 0,53 kg
Tariff number 85366990

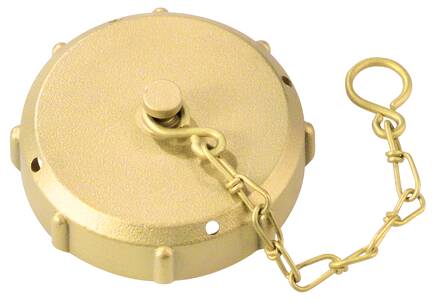

Spare parts
