ESKV 25 PLUS BK

Cable gland, plastic, M25, RAL 9005, extended clamping range

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo
Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M
Ø Connection thread D 25
Lead 1,5
Length screw-in thread L 10 mm
Ø cable diameter min 13 mm
Ø cable diameter max 17,5 mm
Key width SW 29 mm
Collar diameter (E) 32 mm
Total length TL 40 mm - 43 mm
Type of cable anchorage A
Install. torques fitting 10 N m
Install. torques fitting/EADR 4 N m
Install. torques cap nut 4 N m
Impact category 4
Product Color RAL 9005
Type ESKV 25 PLUS BK
Order no. RAL 9005 10110697
Packing unit 50
EAN number 4007686246001
Tariff number 39269097
ETIM-Classification EC000441

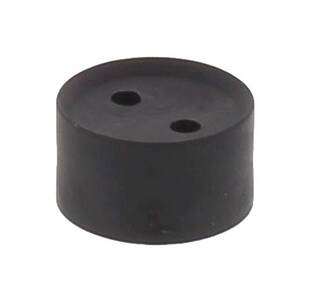

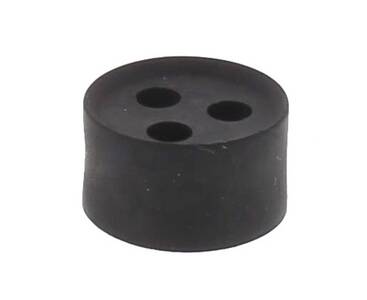

Recommended accessories
