Junction box 7219404 - SE

Junction box Ø 89mm, aluminium, RAL 7032

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo
WISKA-Order no. 50045014
Type Junction box 7219404 - SE
Voltage 500 V
Protection class IP67
Material Cast aluminium
Type of cable gland PG16 / 12-14mm
Using for cable gland Using for cable gland
Ø cable diameter min 12 mm
Ø cable diameter max 14 mm
Internal dimensions LxWxH Ø 80mm
External dimensions LxWxH 120x100x51mm
Mounting Surface mounting
Temp. range min -25 °C
Temp. range max 45 °C
Rated cross section 2,5 mm²

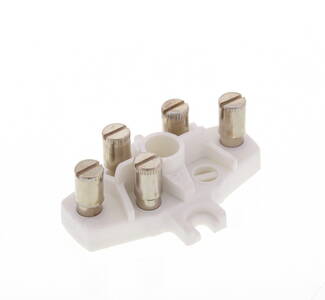

Terminals/poles 5-pole + E, 2,5mm²
Operational areas Outdoor, Indoor work space, Engine room
Colour RAL 7032
Weight 0,3 kg
Variations on request
Tariff number 85369010

Spare parts
